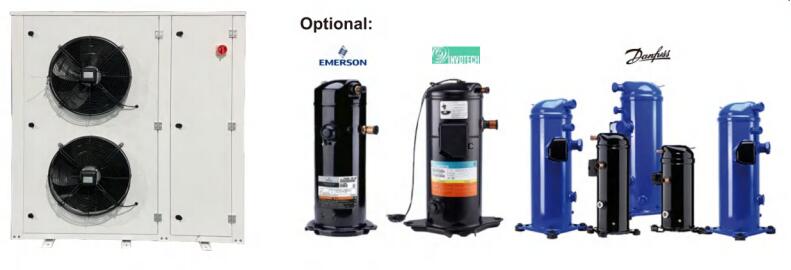

It is an integrated outdoor alir-cooled units, compact structure, nice appearance. Selectable popular brand compressor. Copeland ZB,ZSI, ZFI, ZF, Danfoss, INVOTECH etc.
*Compressor Brand Available Upon Request
Advantages:
Condenser adopt L design with high fficiency copper pipe, which perfect heat exchange and low air resistance.
Shell metal adopt steel plate with spraying treatment, strong anti-corrosion, compact overall structure, convenient installation, space saving,
Open are convenient for maintenance and inspection, the connector of the inlet and outlet pipe is optional with weld and screw.
Suitable for high, medium and low temperature libraries, display cabinets, industrial equipment, hotels, kitchens, electronic chemical and other industries.
| Model | Compressor | Condenser | S (Inch) | D (Inch) | Overall Dimension L*W*H(mm) | ||||||
| Model | HP | Fan Diameter (mm) | Air Flow (m3/h) | Fan Voltage | Power of Fan(W) | Poles | kW | ||||
| LTO-2DES-3Y | 2DES-3Y | 3 | 500 | 1*6900 | 220V/1PH/50Hz | 1*380 | 4 | 10700 | 7/8 | 1/2 | 1500*790*970 |
| LTO-2CES-4Y | 2CES-4Y | 4 | 500 | 1*6900 | 220V/1PH/50Hz | 1*380 | 4 | 14260 | 7/8 | 1/2 | 1500*790*970 |
| LTO- 4FES-5Y | 4FES-5Y | 5 | 500 | 2*6900 | 220V/1PH/50Hz | 2*380 | 4 | 16000 | 7/8 | 1/2 | 1720*940*1570 |
| LTO-4EES-6Y | 4EES-6Y | 6 | 500 | 2*6900 | 220V/1PH/50Hz | 2*380 | 4 | 24000 | 1-1/8 | 1/2 | 1920*940*1570 |
| LTO-4DES-7Y | 4DES-7Y | 7 | 500 | 2*6900 | 220V/1PH/50Hz | 2*380 | 4 | 24000 | 1-1/8 | 1/2 | 1720*940*1570 |
| LTO-4CES-9Y | 4CES-9Y | 9 | 500 | 2*6900 | 220V/1PH/50Hz | 2*380 | 4 | 32000 | 1-1/8 | 5/8 | 1720*940*1570 |
| LTO-4VES-10Y | 4VES-10Y | 10 | 500 | 2*6900 | 220V/1PH/50Hz | 2*380 | 4 | 32000 | 1-1/8 | 5/8 | 1720*940*1570 |
| LTO-4TES-12Y | 4TES-12Y | 12 | 500 | 2*6900 | 220V/1PH/50Hz | 2*380 | 4 | 40000 | 1-3/8 | 5/8 | 1720*940*1570 |
| LTO-4PES-15Y | 4PES-15Y | 15 | 500 | 4*6900 | 220V/1PH/50Hz | 2*380 | 4 | 47360 | 1-5/8 | 7/8 | 2200*940*1570 |
| LTO-4NES-20Y | 4NES-20Y | 20 | 500 | 4*6900 | 220V/1PH/50Hz | 2*380 | 4 | 59200 | 1-5/8 | 7/8 | 2200*940*1570 |
| LTO-4FES-3Y | 4FES-3Y | 3 | 500 | 1*6900 | 220V/1PH/50Hz | 1*380 | 4 | 10700 | 7/8 | 1/2 | 1500*790*970 |
| LTO-4EES-4Y | 4EES-4Y | 4 | 500 | 1*6900 | 220V/1PH/50Hz | 1*380 | 4 | 14260 | 7/8 | 1/2 | 1500*790*970 |
| LTO-4DES-5Y | 4DES-5Y | 5 | 500 | 2*6900 | 220V/1PH/50Hz | 2*380 | 4 | 16000 | 7/8 | 1/2 | 1720*940*1570 |
| LTO-4CES-6Y | 4CES-6Y | 6 | 500 | 2*6900 | 220V/1PH/50Hz | 2*380 | 4 | 24000 | 1-1/8 | 1/2 | 1920*940*1570 |
| LTO-4VES-7Y | 4VES-7Y | 7 | 500 | 2*6900 | 220V/1PH/50Hz | 2*380 | 4 | 24000 | 1-1/8 | 1/2 | 1720*940*1570 |
| LTO-4TES-9Y | 4TES-9Y | 9 | 500 | 2*6900 | 220V/1PH/50Hz | 2*380 | 4 | 32000 | 1-1/8 | 5/8 | 1720*940*1570 |
| LTO-4PES-12Y | 4PES-12Y | 12 | 500 | 2*6900 | 220V/1PH/50Hz | 2*380 | 4 | 32000 | 1-1/8 | 5/8 | 1720*940*1570 |
| LTO-4NES-14Y | 4NES-14Y | 14 | 500 | 2*6900 | 220V/1PH/50Hz | 2*380 | 4 | 40000 | 1-3/8 | 5/8 | 1720*940*1570 |
| LTO-4JE-15Y | 4JE-15Y | 15 | 500 | 4*6900 | 220V/1PH/50Hz | 2*380 | 4 | 47360 | 1-5/8 | 7/8 | 2200*940*1570 |
| LTO-4HE-18Y | 4HE-18Y | 18 | 500 | 4*6900 | 220V/1PH/50Hz | 2*380 | 4 | 59200 | 1-5/8 | 7/8 | 2200*940*1570 |
| Model | Compressor | Cooling capacity(W) | Refrigerant | Temperature/ °C | ||||
| Model | HP | Evaporating Temperature | ||||||
| -5°C | -10°C | -15°C | -20°C | |||||
| LTO-2DES-3Y | 2DES-3Y | 3 | 7420 | 6070 | 4890 | 3870 | R404A | -25°C ~+5°C |
| LTO-2CES-4Y | 2CES-4Y | 4 | 19180 | 7540 | 6120 | 4880 | ||
| LTO- 4FES-5Y | 4FES-5Y | 5 | 9940 | 8130 | 6580 | 5250 | ||
| LTO-4EES-6Y | 4EES-6Y | 6 | 12510 | 10200 | 8220 | 6520 | ||
| LTO-4DES-7Y | 4DES-7Y | 7 | 15220 | 12440 | 10040 | 8000 | ||
| LTO-4CES-9Y | 4CES-9Y | 9 | 18520 | 15080 | 12120 | 9610 | ||
| LTO-4VES-10Y | 4VES-10Y | 10 | 19180 | 15420 | 12200 | 9480 | ||
| LTO-4TES-12Y | 4TES-12Y | 12 | 23300 | 18810 | 14990 | 11730 | ||
| LTO-4PES-15Y | 4PES-15Y | 15 | 26350 | 21150 | 16680 | 12920 | ||
| LTO-4NES-20Y | 4NES-20Y | 20 | 31700 | 25650 | 20450 | 16070 | ||
| Model | Compressor | Cooling capacity(W) | Refrigerant | Temperature/ °C | ||||
| Model | HP | Evaporating Temperature | ||||||
| -20°C | -25°C | -30°C | -35°C | |||||
| LTO-4FES-3Y | 4FES-3Y | 3 | 5250 | 4120 | 3170 | 2380 | R404A | -30°C ~-15°C |
| LTO-4EES-4Y | 4EES-4Y | 4 | 6690 | 5240 | 4020 | 3010 | ||
| LTO-4DES-5Y | 4DES-5Y | 5 | 8000 | 6260 | 4800 | 3600 | ||
| LTO-4CES-6Y | 4CES-6Y | 6 | 9610 | 7480 | 5690 | 4220 | ||
| LTO-4VES-7Y | 4VES-7Y | 7 | 9480 | 7190 | 5280 | 3710 | ||
| LTO-4TES-9Y | 4TES-9Y | 9 | 11780 | 9030 | 6740 | 4840 | ||
| LTO-4PES-12Y | 4PES-12Y | 12 | 13010 | 9830 | 7200 | 5040 | ||
| LTO-4NES-14Y | 4NES-14Y | 14 | 15950 | 12240 | 9140 | 6580 | ||
| LTO-4JE-15Y | 4JE-15Y | 15 | 19080 | 14810 | 11200 | 8160 | ||
| LTO-4HE-18Y | 4HE-18Y | 18 | 22600 | 17720 | 13570 | 10070 | ||
