●The scientific and reasonable bilateral outlet for cold air uniform distribution.
●AlI the air coolers equipped new fan motor assemblies with high efficiency, low noise and internal thermal protection.
●Shell metal made by high- quality steel sheet, high strength, excellent vibration resistance, and spray-treated to be more resistant to corrosion.
●Inside of water drain plate is equipped with defroster for accelerate defrosting evenly.
It suits to temperature cooling device, widely used into processing room.
Cool air discharge from both sides, much more soft.
Dividing into 2 series DH-L and DH-D according to fin space difference, suit to different room temperature.
DH-L series for room temperature-5to +5 °C，
DH-D series for room temperature -20to -15°C
Rt: 0°C, Fin: 4.5mm Refrigerant: R404A

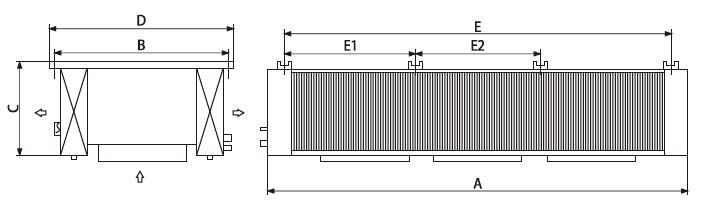

| Model | Capacity | Area | Tube Volume | Connection | Fan Motor | Electric Defrost | A(mm) | B(mm) | C(mm) | |||||
| △t=10°C Temperature of Storage-8°C | Liquid | Gas | Quantity | Diameter | Power | Voltage | Air Flow | Coil | ||||||
| w | ㎡ | dm³ | mm | mm | pcs | mm | w | v | m³/h | kw | ||||
| DH-L10 | 1530 | 10 | 2.44 | φ15.5 | φ19 | 1 | 300 | 1*108 | 380 | 1*1700 | 2*500 | 600 | 350 | 720 |
| DH-L20 | 4260 | 20 | 4.18 | φ15.5 | φ19 | 2 | 300 | 2*108 | 380 | 2*1700 | 2*1600 | 1040 | 350 | 720 |
| DH-L30 | 4610 | 30 | 5.86 | φ15.5 | φ19 | 3 | 300 | 2*108 | 380 | 3*1700 | 2*2400 | 1460 | 350 | 720 |
| DH-L40 | 6150 | 40 | 6.03 | φ15.5 | φ25 | 2 | 400 | 2*227 | 380 | 2*4000 | 2*2400 | 1280 | 350 | 930 |
| DH-L 55 | 8600 | 55 | 7.80 | φ15.5 | φ25 | 2 | 450 | 2*227 | 380 | 2*4000 | 2*3000 | 1600 | 350 | 930 |
| DH-L80 | 12450 | 80 | 11.74 | φ19 | φ38 | 2 | 450 | 2*278 | 380 | 2*5000 | 2*3400 | 1780 | 350 | 1100 |
| DH-L105 | 16380 | 105 | 15.06 | φ19 | φ38 | 3 | 450 | 2*278 | 380 | 3*5000 | 2*4000 | 2230 | 350 | 1100 |
Rt: 0°C, Fin: 6.0mm Refrigerant: R404A
| Model | Capacity | Area | Tube Volume | Connection | Fan Motor | Electric Defrost | A(mm) | B(mm) | C(mm) | |||||
| △t=10°C Temperature of Storage-8°C | Liquid | Gas | Quantity | Diameter | Power | Voltage | Air Flow | Coil | ||||||
| w | ㎡ | dm³ | mm | mm | pcs | mm | w | v | m³/h | kw | ||||
| DH-D7 | 1300 | 7 | 2.44 | φ15.5 | φ19 | 1 | 300 | 1*108 | 380 | 1*1700 | 2*500 | 600 | 350 | 720 |
| DH-D15 | 2800 | 15 | 4.18 | φ15.5 | φ19 | 2 | 300 | 2*108 | 380 | 2*1700 | 2*1600 | 1040 | 350 | 720 |
| DH-D22 | 3700 | 22 | 5.86 | φ15.5 | φ19 | 3 | 300 | 2*108 | 380 | 3*1700 | 2*2400 | 1460 | 350 | 720 |
| DH-D30 | 5600 | 30 | 6.03 | φ15.5 | φ25 | 2 | 400 | 2*227 | 380 | 2*4000 | 2*2400 | 1280 | 350 | 930 |
| DH-D40 | 7500 | 40 | 7.80 | φ15.5 | φ25 | 2 | 400 | 2*227 | 380 | 2*4000 | 2*3000 | 1600 | 350 | 930 |
| DH-D60 | 11200 | 60 | 11.74 | φ19 | φ38 | 2 | 450 | 2*278 | 380 | 2*5000 | 2*3400 | 1780 | 350 | 1100 |
| DH-D80 | 14900 | 80 | 15.06 | φ19 | φ38 | 3 | 450 | 2*278 | 380 | 3*5000 | 2*4000 | 2230 | 350 | 1100 |
