Standard configuration: Compressor, condenser, fan motor, liquid receiver, filter drier.
Selection accessories: Oil separator, pressure controller, H/L P oill gauge, suction accumulator, sight glass.
Adopt Tecumseh hermetic piston compressor.
Wide applications, adapt L/M/H BP different working conditions.
Compact structure, small and flexible, beautiful appearance, stable and reliable quality.
Adopt famous brand and high quality refrigeration accessories.

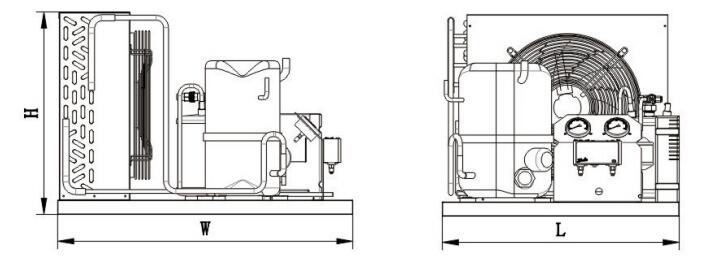

| Model | Compressor | Condenser | S (Inch) | D (Inch) | Overall Dimension L*W*H(mm) | ||||
| Model | HP | Fan Diameter (mm) | Air Flow (m3/h) | Power of Fan(W) | kW | ||||
| LT-SC10CL | SC10CL | 0.25 | 200 | 530 | 43 | 0.9 | 8.2 | 9.5 | 460*360*250 |
| LT-SC12CL | SC12CL | 0.33 | 250 | 730 | 50 | 1.3 | 10.2 | 9.5 | 460*400*300 |
| LT-SC15CL | SC15CL | 0.5 | 300 | 1664 | 85 | 1.9 | 10.2 | 9.5 | 460*460*350 |
| LT-SC18CL | SC18CL | 0.75 | 300 | 1664 | 85 | 2.5 | 10.2 | 9.5 | 460*460*350 |
| LT-SC21CL | SC21CL | 1 | 350 | 2270 | 129 | 2.7 | 10.2 | 9.5 | 520*500*460 |
| LT-SC10G | SC10G | 0.25 | 200 | 530 | 43 | 8.2 | 8.2 | 9.5 | 460*400*250 |
| LT-SC12G | SC12G | 0.33 | 250 | 730 | 50 | 10.2 | 10.2 | 9.5 | 460*460*350 |
| LT-SC15G | SC15G | 0.5 | 300 | 1664 | 85 | 10.2 | 10.2 | 9.5 | 460*460*350 |
| LT-SC18G | SC18G | 0.75 | 300 | 1664 | 85 | 10.2 | 10.2 | 9.5 | 520*500*460 |
| LT-SC21G | SC21G | 1 | 350 | 2270 | 129 | 10.2 | 10.2 | 9.5 | 520*500*460 |
| Model | Compressor | Cooling capacity(W) | Refrigerant | Temperature/ °C | ||||
| Model | HP | Evaporating Temperature | ||||||
| -10°C | -15°C | -20°C | -25°C | |||||
| LT-SC10CL | SC10CL | 0.25 | 690 | 532 | 400 | 290 | R404A | -25°C ~+5°C |
| LT-SC12CL | SC12CL | 0.33 | 904 | 697 | 524 | 380 | ||
| LT-SC15CL | SC15CL | 0.5 | 1028 | 792 | 596 | 432 | ||
| LT-SC18CL | SC18CL | 0.75 | 1190 | 917 | 689 | 500 | ||
| LT-SC21CL | SC21CL | 1 | 1410 | 1087 | 817 | 593 | ||
| Model | Compressor | Cooling capacity(W) | Refrigerant | Temperature/ °C | ||||
| Model | HP | Evaporating Temperature | ||||||
| -0°C | -5°C | -10°C | -15°C | |||||
| LT-SC10G | SC10G | 0.25 | 766 | 603 | 465 | 333 | R404A | -25°C ~+15°C |
| LT-SC12G | SC12G | 0.33 | 954 | 750 | 580 | 433 | ||
| LT-SC15G | SC15G | 0.5 | 1128 | 905 | 712 | 527 | ||
| LT-SC18G | SC18G | 0.75 | 1348 | 1082 | 862 | 658 | ||
| LT-SC21G | SC21G | 1 | 1580 | 1261 | 1002 | 755 | ||
