Hybrid solar air conditioners are designed to operate in both on-grid and off-grid modes, offering flexibility and efficiency in energy use. These systems can be powered entirely by solar energy, allowing users to harness 100% of the solar power generated. Additionally, with an integrated battery storage solution, the air conditioner can continue to function smoothly even during periods of weak sunlight or at nighttime. This feature ensures a consistent and reliable cooling experience, making hybrid solar air conditioners an eco-friendly and cost-effective choice for climate control.

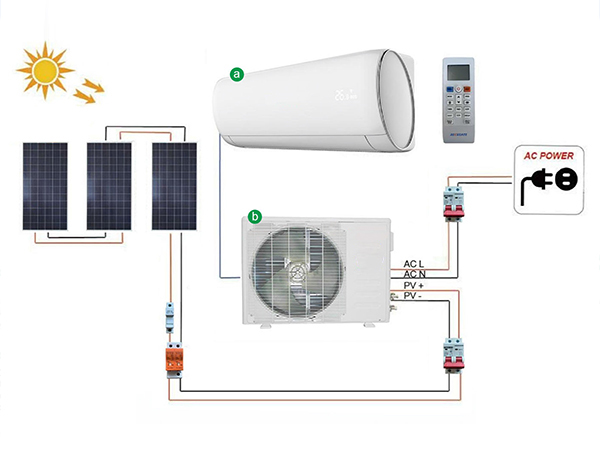

a: ACDC Hybrid Indoor Unit
DC 90V-380V;
Available Capacity 9k, 12k, 18k,
24k Btu;
Digital display;
b: ACDC Hybrid Outdoor Unit
AC Input 220~240V；
50/60HZ;
Low Noise 53~60dB;
Eco Friendly R32;
Solar air comditioner include
A/C Outdoor & Indoor Unit
Solar Module
Custom Roof Mounting System
PV Cable
Fuse Protection
DC Breaker
Lightening Arrester
Copper pipe(4m)
Drain pipe(4m)
Power cable(4m)
Remote contron
MC4 connector
| PRODUCT SPECIFICATION SHEET | RC-ADC09GW-XA-R32 | RC-ADC12GW-XA-R32 | RC-ADC18GW-XA-R32 | RC-ADC24GW-XA-R32 | |||
| Power supply source | V/Ph/Hz | 220-240V，50hz/60hz | |||||
DC | DC90-380V MAX.15A | DC90-380V MAX.15A | DC90-380V MAX.15A | DC90-380V MAX.20A | |||
| Rated Capacity | Cooling | W | 2500 | 3500 | 5000 | 7000 | |
| Heating | W | 2600 | 3600 | 5100 | 7200 | ||
Rated Power Consumption | Cooling | W | 735 | 1030 | 1520 | 2100 | |
| Heating | W | 670 | 980 | 1550 | 2180 | ||
| Rated Running Current | Cooling | A | 3.2 | 4.7 | 6.9 | 9.2 | |
| Heating | A | 2.9 | 4.5 | 7 | 9.5 | ||
| Max. Input Power | W | 1450 | 1870 | 2860 | 3800 | ||
| Max. Input Current | A | 6.6 | 8.5 | 13 | 17.2 | ||
| SEER Cooling | W/W | SEER6.6 | |||||
| SCOP Heating | W/W | SCOP4.6 | SCOP4.0 | ||||
| Refrigerant | R32 | ||||||
| Refrigerant Charged | g | 900 | 920 | 1260 | |||
| Air Flow Volume | m³/h | 650 | 900 | 1200 | |||
| Noise level(INDOOR) | dB(A) | 41 | 42 | 45 | 48 | ||
| Noise level(OUTDOOR) | dB(A) | 50 | 52 | 56 | |||
| Connect pipe | Thickness | mm | φ6*0.5 | ||||
| Gas tube Diameter * Thickness | mm | φ9.52*0.6 | φ12.7*0.7 | φ15.88*0.9 | |||
| Compress or Parameter | Compressor Model | KSK103D53UFZ | KSN108D34UFZ | FTz-SM151AXBA | KTM240D43UMT | ||
| Drive mode | AC/DC | DC | |||||
| Type | Rolling Rotor Type | ||||||
| Brand | GMCC | LAMDA | GMCC | ||||
| Capacity | W | 3405±5% | 5780±5% | 7740±5% | |||
| Input | W | 860±5% | 1320±5% | 2065±5% | |||
| Rated current(RLA) | A | 5.8±5% | 6.0±10% | 9.4±10% | |||
| Dimension | Outdoor | Net Dimension | mm | 795x290x555 | 860*304*733 | ||
| Packing Dimension | mm | 910*400*630 | 1005*450*820 | ||||
| Indoor | Net Dimension | mm | 895*203*300 | 1000*240*310 | 1130*245*320 | ||
| Packing Dimension | mm | 965*275*370 | 1075*310*385 | 1195*310*390 | |||
| Indoor unit weight (Gross/Net ) | Kg | 11/9 | 14.5/12.5 | 17.5/15.5 | |||
| Outdoor unit weight (Gross/Net ) | Kg | 38.5/34.5 | 39/35 | 55/51 | |||
| Loading qty (20/40Q/40HQ) | 90/176/194 | 79/160/180 | 50/105/120 | ||||
